`YPlusModel` Tutorial

Trey V. Wenger (c) January 2025

Here we demonstrate the basic features of the YPlusModel model. The YPlusModel models the radio recombiation line emission to infer y+, the helium abundance by number.

[1]:

# General imports
import os
import pickle
import time

import matplotlib.pyplot as plt
import arviz as az
import pandas as pd
import numpy as np
import pymc as pm

print("pymc version:", pm.__version__)

import bayes_spec
print("bayes_spec version:", bayes_spec.__version__)

import bayes_yplus
print("bayes_yplus version:", bayes_yplus.__version__)

# Notebook configuration
pd.options.display.max_rows = None

pymc version: 5.16.2
bayes_spec version: 1.7.2+4.gfef408d
bayes_yplus version: 1.3.1+0.gb4f2b7d.dirty

Simulating Data

To test the model, we must simulate some data. We can do this with YPlusModel, but we must pack a “dummy” data structure first.

[2]:

from bayes_spec import SpecData

# spectral axis definition
spec_axis = np.linspace(-200.0, 100.0, 251) # km s-1

# data noise can either be a scalar (assumed constant noise across the spectrum)
# or an array of the same length as the data
noise = 1.0 # mK

# brightness data. In this case, we just throw in some random data for now
# since we are only doing this in order to simulate some actual data.
brightness_data = noise * np.random.randn(len(spec_axis)) # mK

# The data can be named anything. We name our data "observation"
observation = SpecData(
    spec_axis,
    brightness_data,
    noise,
    xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
    ylabel="Brightness Temperature (mK)",
)
dummy_data = {"observation": observation}

for label, dataset in dummy_data.items():
    print(label, len(dataset.spectral))
    # HACK: normalize data by noise
    dataset._brightness_offset = np.median(dataset.brightness)
    dataset._brightness_scale = dataset.noise

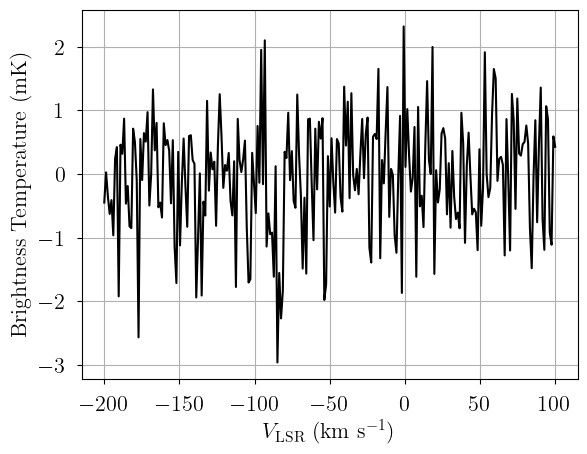

# Plot the dummy data
plt.plot(dummy_data["observation"].spectral, dummy_data["observation"].brightness, 'k-')
plt.xlabel(dummy_data["observation"].xlabel)
_ = plt.ylabel(dummy_data["observation"].ylabel)

observation 251

Now that we have a dummy data format, we can generate a simulated observation by evaluating the likelihood for a given set of model parameters.

[3]:

from bayes_yplus import YPlusModel

# Initialize and define the model
n_clouds = 3
baseline_degree = 1
model = YPlusModel(
    dummy_data,
    n_clouds=n_clouds,
    baseline_degree=baseline_degree,
    seed=1234,
    verbose=True
)
model.add_priors(
    prior_H_area = 1000.0, # width of the H_area prior (mK km s-1)
    prior_H_center = [0.0, 25.0], # mean and width of H_center prior (km s-1)
    prior_H_fwhm = [25.0, 10.0], # mean and width of H FWHM prior (km s-1)
    prior_He_H_fwhm_ratio = [1.0, 0.1], # mean and width of He/H FWHM ratio prior
    prior_yplus = 0.05, # width of yplus prior
    prior_rms = None, # do not infer spectral rms
    prior_baseline_coeffs = None, # use default baseline priors
    ordered = False, # do not assume ordered components
)
model.add_likelihood()

sim_brightness = model.model.observation.eval({
    "H_area": [800.0, 1000.0, 1200.0],
    "H_center": [-30.0, 5.0, 25.0],
    "H_fwhm": [20.0, 25.0, 30.0],
    "He_H_fwhm_ratio": [1.1, 1.0, 0.9],
    "yplus": [0.1, 0.15, 0.05],
    "baseline_observation_norm": [-2.0, 1.5], # normalized baseline coefficients
})

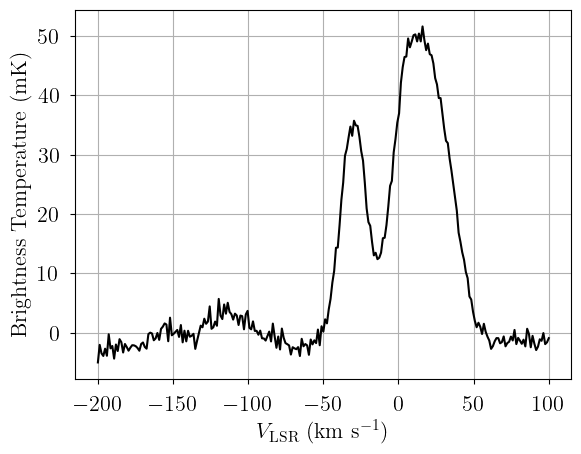

# Plot the simulated data
plt.plot(dummy_data["observation"].spectral, sim_brightness, 'k-')
plt.xlabel(dummy_data["observation"].xlabel)
_ = plt.ylabel(dummy_data["observation"].ylabel)

[4]:

# Now we pack the simulated spectrum into a new SpecData instance
observation = SpecData(
    spec_axis,
    sim_brightness,
    noise,
    xlabel=r"$V_{\rm LSR}$ (km s$^{-1}$)",
    ylabel="Brightness Temperature (mK)",
)
data = {"observation": observation}

for label, dataset in data.items():
    print(label, len(dataset.spectral))
    # HACK: normalize data by noise
    dataset._brightness_offset = np.median(dataset.brightness)
    dataset._brightness_scale = dataset.noise

observation 251

Model Definition

Finally, with our model definition and (simulated) data in hand, we can explore the capabilities of YPlusModel. Here we create a new model with the simulated data.

[5]:

# Initialize and define the model
model = YPlusModel(
    data,
    n_clouds=n_clouds,
    baseline_degree=baseline_degree,
    seed=1234,
    verbose=True
)
model.add_priors(
    prior_H_area = 1000.0, # width of the H_area prior (mK km s-1)
    prior_H_center = [0.0, 25.0], # mean and width of H_center prior (km s-1)
    prior_H_fwhm = [25.0, 10.0], # mean and width of H FWHM prior (km s-1)
    prior_He_H_fwhm_ratio = [1.0, 0.1], # mean and width of He/H FWHM ratio prior
    prior_yplus = 0.05, # width of yplus prior
    prior_rms = None, # do not infer spectral rms
    prior_baseline_coeffs = None, # use default baseline priors
    ordered = False, # do not assume ordered components
)
model.add_likelihood()

[6]:

# Plot model graph
model.graph().render("yplus_model", format="png")
model.graph()

[6]:

[7]:

# model string representation
print(model.model.str_repr())

baseline_observation_norm ~ Normal(0, <constant>)
            H_center_norm ~ Normal(0, 1)
              H_area_norm ~ HalfNormal(0, 1)
                   H_fwhm ~ Gamma(6.25, f())
          He_H_fwhm_ratio ~ Gamma(100, f())
               yplus_norm ~ HalfNormal(0, 1)
                 H_center ~ Deterministic(f(H_center_norm))
                   H_area ~ Deterministic(f(H_area_norm))
                    yplus ~ Deterministic(f(yplus_norm))
              H_amplitude ~ Deterministic(f(H_fwhm, H_area_norm))
             He_amplitude ~ Deterministic(f(He_H_fwhm_ratio, yplus_norm, H_fwhm, H_area_norm))
                He_center ~ Deterministic(f(H_center_norm))
                  He_fwhm ~ Deterministic(f(He_H_fwhm_ratio, H_fwhm))
                  He_area ~ Deterministic(f(He_H_fwhm_ratio, H_fwhm, yplus_norm, H_area_norm))
              observation ~ Normal(f(H_area_norm, H_fwhm, He_H_fwhm_ratio, baseline_observation_norm, yplus_norm, H_center_norm), <constant>)

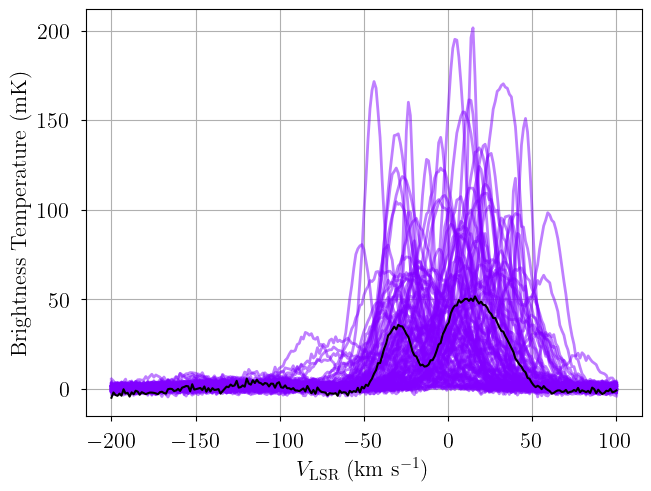

We check that our prior distributions are reasonable by drawing prior predictive checks. Each colored line is a simulated “observation” with parameters drawn from the prior distributions. You should check that these simulated observations at least somewhat overlap your actual observation (black line).

[8]:

from bayes_spec.plots import plot_predictive

# prior predictive check
prior = model.sample_prior_predictive(
    samples=100,  # prior predictive samples
)
_ = plot_predictive(model.data, prior.prior_predictive)

Sampling: [H_area_norm, H_center_norm, H_fwhm, He_H_fwhm_ratio, baseline_observation_norm, observation, yplus_norm]

[9]:

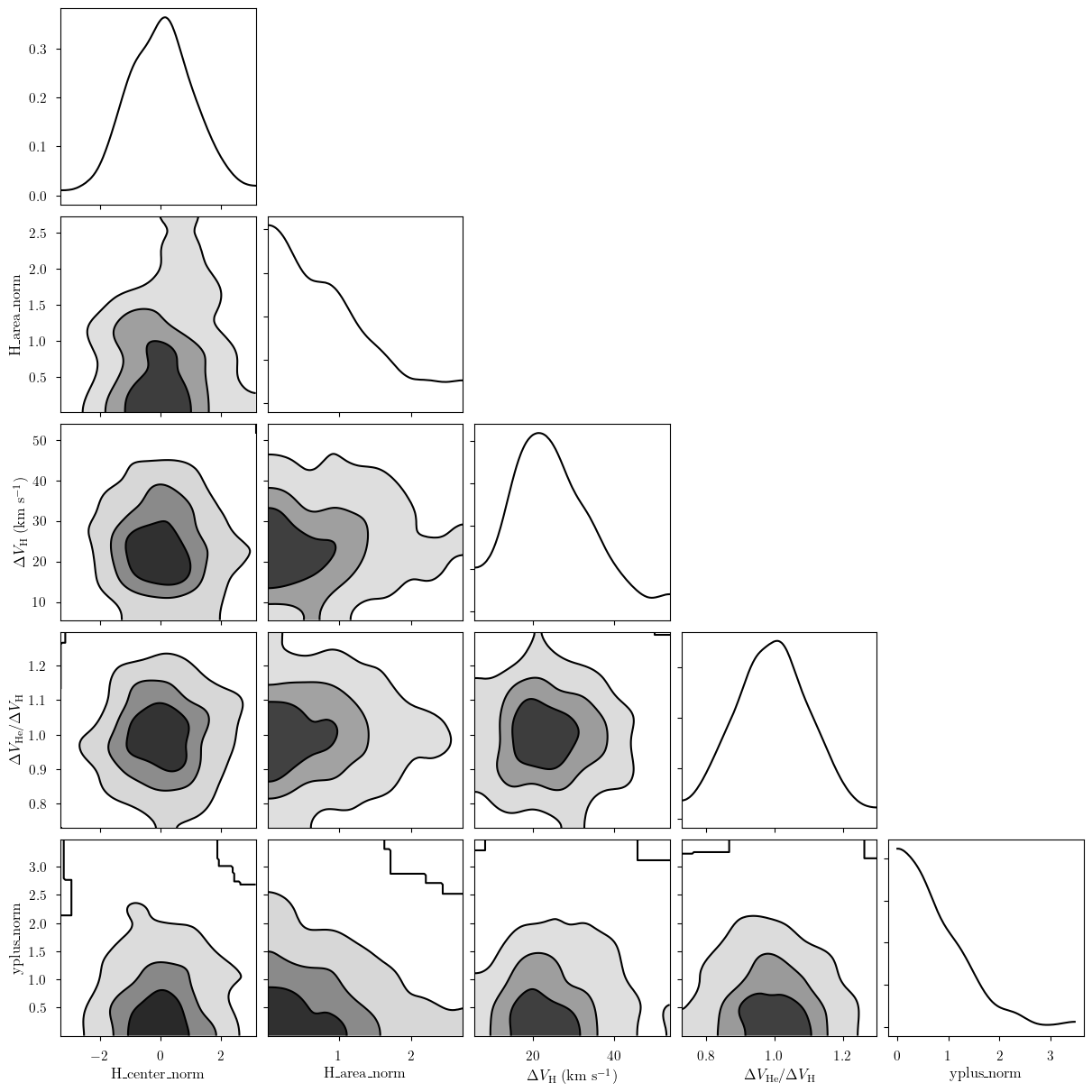

from bayes_spec.plots import plot_pair

_ = plot_pair(
    prior.prior, # samples
    model.cloud_freeRVs, # var_names to plot
    labeller=model.labeller, # label manager
)

[10]:

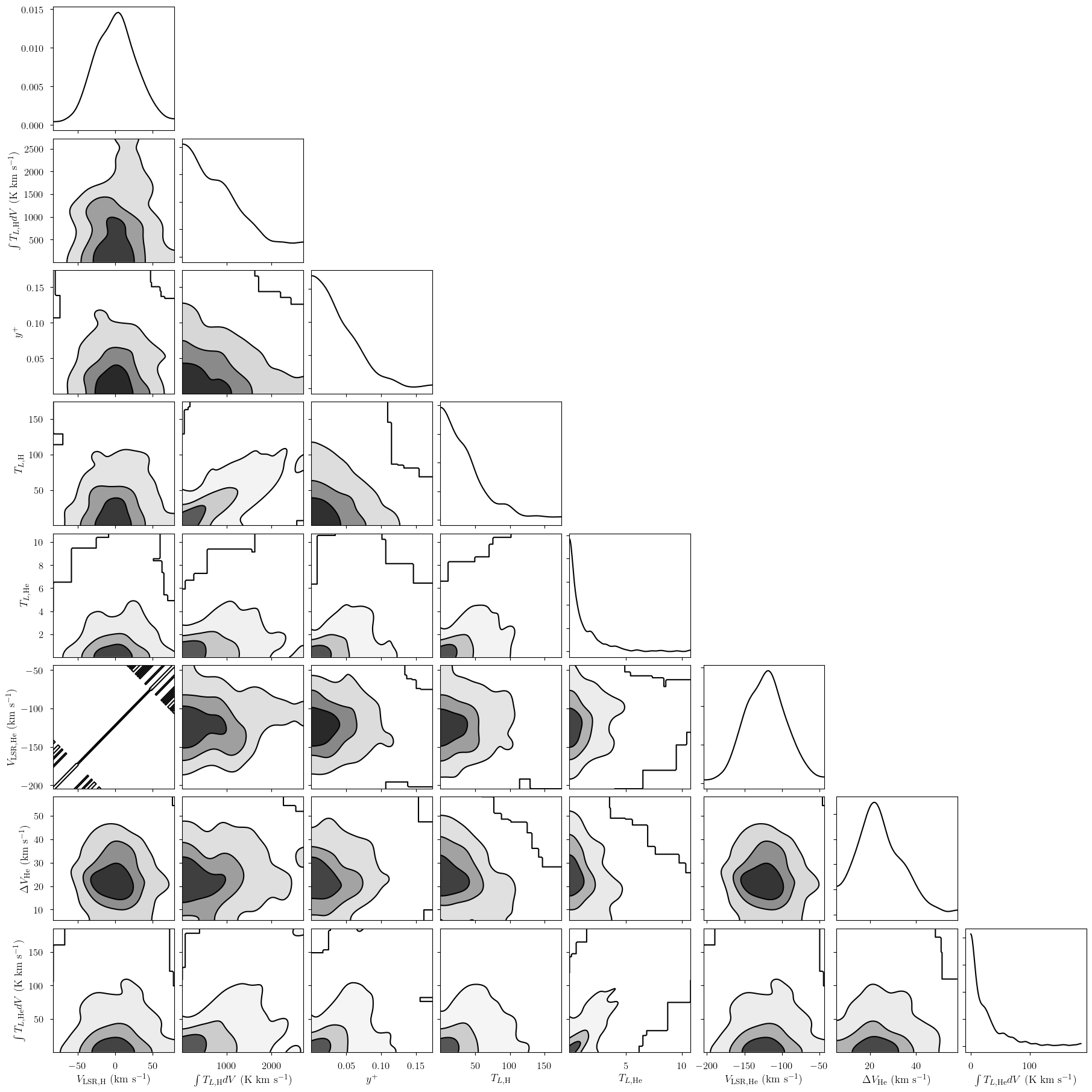

from bayes_spec.plots import plot_pair

_ = plot_pair(
    prior.prior, # samples
    model.cloud_deterministics, # var_names to plot
    labeller=model.labeller, # label manager
)

Variational Inference

We can approximate the posterior distribution using variational inference.

[11]:

start = time.time()
model.fit(
    n = 100_000, # maximum number of VI iterations
    draws = 1_000, # number of posterior samples
    rel_tolerance = 0.01, # VI relative convergence threshold
    abs_tolerance = 0.05, # VI absolute convergence threshold
    learning_rate = 1e-2, # VI learning rate
)
end = time.time()
print(f"Runtime: {(end-start)/60.0:.2f} minutes")

Convergence achieved at 5300
Interrupted at 5,299 [5%]: Average Loss = 5,181.6

Runtime: 0.39 minutes

[12]:

pm.summary(model.trace.posterior)

arviz - WARNING - Shape validation failed: input_shape: (1, 1000), minimum_shape: (chains=2, draws=4)

[12]:

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
H_amplitude[0]	37.278	0.461	36.365	38.152	0.015	0.011	916.0	849.0	NaN
H_amplitude[1]	28.858	0.449	28.042	29.699	0.014	0.010	1004.0	975.0	NaN
H_amplitude[2]	43.778	0.359	43.092	44.393	0.011	0.008	1029.0	1026.0	NaN
H_area[0]	813.683	6.609	800.374	825.175	0.206	0.145	1036.0	1023.0	NaN
H_area[1]	697.347	7.701	682.671	711.343	0.245	0.173	989.0	992.0	NaN
H_area[2]	1517.676	8.178	1502.908	1532.906	0.260	0.184	989.0	944.0	NaN
H_area_norm[0]	0.814	0.007	0.800	0.825	0.000	0.000	1036.0	1023.0	NaN
H_area_norm[1]	0.697	0.008	0.683	0.711	0.000	0.000	989.0	992.0	NaN
H_area_norm[2]	1.518	0.008	1.503	1.533	0.000	0.000	989.0	944.0	NaN
H_center[0]	-29.891	0.104	-30.075	-29.683	0.003	0.002	1007.0	939.0	NaN
H_center[1]	3.106	0.137	2.844	3.346	0.004	0.003	958.0	897.0	NaN
H_center[2]	22.158	0.115	21.955	22.384	0.004	0.002	1055.0	936.0	NaN
H_center_norm[0]	-1.196	0.004	-1.203	-1.187	0.000	0.000	1007.0	939.0	NaN
H_center_norm[1]	0.124	0.005	0.114	0.134	0.000	0.000	958.0	897.0	NaN
H_center_norm[2]	0.886	0.005	0.878	0.895	0.000	0.000	1055.0	936.0	NaN
H_fwhm[0]	20.507	0.191	20.122	20.831	0.006	0.004	937.0	943.0	NaN
H_fwhm[1]	22.704	0.246	22.229	23.141	0.008	0.005	1061.0	979.0	NaN
H_fwhm[2]	32.570	0.208	32.197	32.959	0.007	0.005	906.0	983.0	NaN
He_H_fwhm_ratio[0]	1.049	0.082	0.910	1.219	0.003	0.002	959.0	970.0	NaN
He_H_fwhm_ratio[1]	1.039	0.060	0.920	1.144	0.002	0.001	1066.0	937.0	NaN
He_H_fwhm_ratio[2]	0.950	0.075	0.821	1.100	0.002	0.002	1041.0	824.0	NaN
He_amplitude[0]	2.966	0.400	2.279	3.746	0.013	0.009	965.0	874.0	NaN
He_amplitude[1]	4.476	0.377	3.781	5.167	0.012	0.009	960.0	983.0	NaN
He_amplitude[2]	3.028	0.358	2.429	3.752	0.011	0.008	1000.0	875.0	NaN
He_area[0]	67.434	6.880	54.001	79.317	0.233	0.165	850.0	665.0	NaN
He_area[1]	111.992	6.972	97.582	124.095	0.219	0.155	1015.0	1069.0	NaN
He_area[2]	99.084	8.232	83.658	113.845	0.258	0.182	1010.0	914.0	NaN
He_center[0]	-152.041	0.104	-152.225	-151.833	0.003	0.002	1007.0	939.0	NaN
He_center[1]	-119.044	0.137	-119.306	-118.804	0.004	0.003	958.0	897.0	NaN
He_center[2]	-99.992	0.115	-100.195	-99.766	0.004	0.002	1055.0	936.0	NaN
He_fwhm[0]	21.505	1.705	18.812	25.202	0.055	0.039	955.0	623.0	NaN
He_fwhm[1]	23.581	1.365	21.006	26.061	0.042	0.030	1030.0	1024.0	NaN
He_fwhm[2]	30.938	2.429	26.639	35.589	0.075	0.053	1055.0	916.0	NaN
baseline_observation_norm[0]	-2.682	0.071	-2.802	-2.535	0.003	0.002	806.0	957.0	NaN
baseline_observation_norm[1]	1.052	0.253	0.599	1.546	0.008	0.006	1055.0	941.0	NaN
yplus[0]	0.083	0.008	0.066	0.097	0.000	0.000	818.0	614.0	NaN
yplus[1]	0.161	0.010	0.141	0.178	0.000	0.000	988.0	1015.0	NaN
yplus[2]	0.065	0.005	0.055	0.075	0.000	0.000	1010.0	991.0	NaN
yplus_norm[0]	1.658	0.169	1.329	1.948	0.006	0.004	818.0	614.0	NaN
yplus_norm[1]	3.212	0.197	2.828	3.570	0.006	0.004	988.0	1015.0	NaN
yplus_norm[2]	1.306	0.108	1.099	1.493	0.003	0.002	1010.0	991.0	NaN

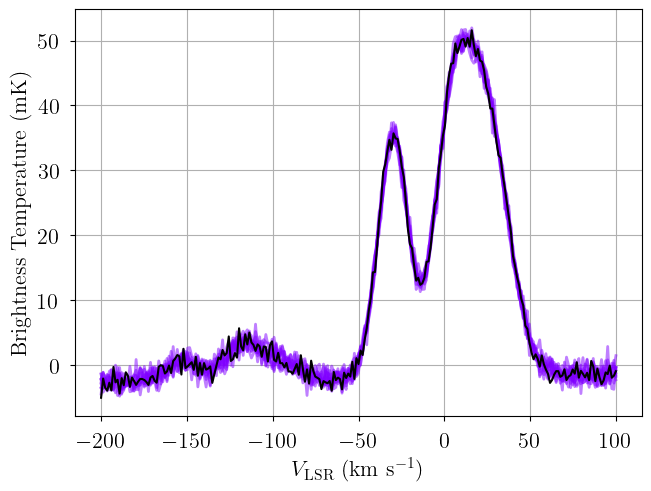

[13]:

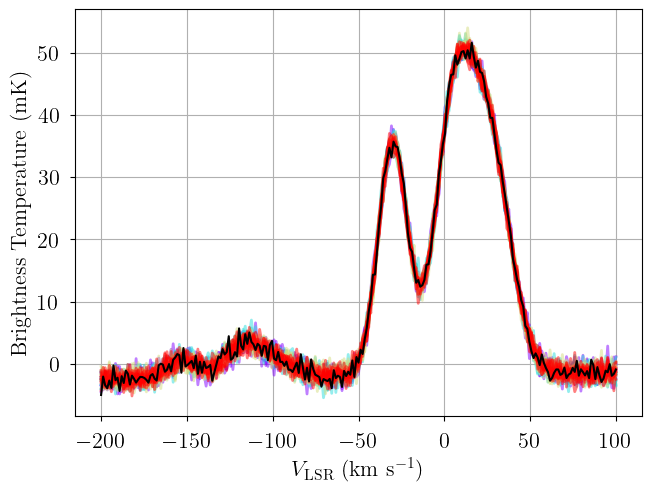

posterior = model.sample_posterior_predictive(
    thin=100, # keep one in {thin} posterior samples
)
_ = plot_predictive(model.data, posterior.posterior_predictive)

Sampling: [observation]

Posterior Sampling: MCMC

We can sample from the posterior distribution using MCMC.

[14]:

start = time.time()
model.sample(
    init = "advi+adapt_diag", # initialization strategy
    tune = 1000, # tuning samples
    draws = 1000, # posterior samples
    chains = 4, # number of independent chains
    cores = 4, # number of parallel chains
    init_kwargs = {"rel_tolerance": 0.01, "abs_tolerance": 0.05, "learning_rate": 1e-2}, # VI initialization arguments
    nuts_kwargs = {"target_accept": 0.8}, # NUTS arguments
)
end = time.time()
print(f"Runtime: {(end-start)/60.0:.2f} minutes")

Initializing NUTS using custom advi+adapt_diag strategy

Convergence achieved at 5300
Interrupted at 5,299 [5%]: Average Loss = 5,181.6
Multiprocess sampling (4 chains in 4 jobs)
NUTS: [baseline_observation_norm, H_center_norm, H_area_norm, H_fwhm, He_H_fwhm_ratio, yplus_norm]

Sampling 4 chains for 1_000 tune and 1_000 draw iterations (4_000 + 4_000 draws total) took 59 seconds.

Adding log-likelihood to trace

Runtime: 1.41 minutes

[15]:

model.solve(kl_div_threshold=0.9)

GMM converged to unique solution

[16]:

pm.summary(model.trace.solution_0)

[16]:

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
H_amplitude[0]	37.455	0.362	36.772	38.132	0.005	0.003	5811.0	3136.0	1.00
H_amplitude[1]	38.676	3.628	31.908	45.512	0.120	0.085	907.0	1321.0	1.01
H_amplitude[2]	37.453	2.792	32.046	42.425	0.093	0.066	899.0	1185.0	1.01
H_area[0]	803.055	11.282	781.089	823.590	0.294	0.208	1471.0	2189.0	1.00
H_area[1]	1041.562	139.094	775.593	1301.150	4.666	3.305	890.0	1212.0	1.01
H_area[2]	1170.196	138.528	923.766	1448.213	4.670	3.303	880.0	1197.0	1.01
H_area_norm[0]	0.803	0.011	0.781	0.824	0.000	0.000	1471.0	2189.0	1.00
H_area_norm[1]	1.042	0.139	0.776	1.301	0.005	0.003	890.0	1212.0	1.01
H_area_norm[2]	1.170	0.139	0.924	1.448	0.005	0.003	880.0	1197.0	1.01
H_center[0]	-29.990	0.114	-30.197	-29.767	0.002	0.002	2314.0	2321.0	1.00
H_center[1]	5.203	0.940	3.471	6.984	0.031	0.022	897.0	1230.0	1.01
H_center[2]	25.543	1.381	22.875	28.096	0.046	0.033	899.0	1239.0	1.01
H_center_norm[0]	-1.200	0.005	-1.208	-1.191	0.000	0.000	2314.0	2321.0	1.00
H_center_norm[1]	0.208	0.038	0.139	0.279	0.001	0.001	897.0	1230.0	1.01
H_center_norm[2]	1.022	0.055	0.915	1.124	0.002	0.001	899.0	1239.0	1.01
H_fwhm[0]	20.143	0.291	19.606	20.670	0.007	0.005	1893.0	2559.0	1.00
H_fwhm[1]	25.208	1.117	23.097	27.246	0.036	0.026	958.0	1133.0	1.01
H_fwhm[2]	29.260	1.387	26.698	31.882	0.045	0.032	937.0	1375.0	1.01
He_H_fwhm_ratio[0]	1.031	0.090	0.863	1.200	0.002	0.001	2772.0	2444.0	1.00
He_H_fwhm_ratio[1]	1.029	0.065	0.914	1.158	0.001	0.001	2993.0	2837.0	1.00
He_H_fwhm_ratio[2]	0.980	0.087	0.818	1.139	0.002	0.001	3038.0	2670.0	1.00
He_amplitude[0]	2.984	0.348	2.333	3.641	0.006	0.004	3739.0	2939.0	1.00
He_amplitude[1]	5.207	0.386	4.443	5.891	0.008	0.006	2342.0	2751.0	1.00
He_amplitude[2]	2.030	0.500	1.016	2.913	0.015	0.010	1164.0	1435.0	1.00
He_area[0]	65.844	8.719	50.214	82.647	0.194	0.137	1994.0	2704.0	1.00
He_area[1]	143.813	15.864	111.302	171.022	0.435	0.308	1335.0	1977.0	1.00
He_area[2]	62.151	17.245	28.949	94.072	0.526	0.372	1065.0	1359.0	1.00
He_center[0]	-152.140	0.114	-152.347	-151.917	0.002	0.002	2314.0	2321.0	1.00
He_center[1]	-116.947	0.940	-118.679	-115.166	0.031	0.022	897.0	1230.0	1.01
He_center[2]	-96.607	1.381	-99.275	-94.054	0.046	0.033	899.0	1239.0	1.01
He_fwhm[0]	20.772	1.836	17.292	24.148	0.036	0.025	2594.0	2517.0	1.00
He_fwhm[1]	25.936	1.979	22.492	29.773	0.048	0.034	1733.0	2229.0	1.00
He_fwhm[2]	28.656	2.760	23.720	34.030	0.059	0.042	2130.0	2564.0	1.00
baseline_observation_norm[0]	-2.626	0.111	-2.841	-2.434	0.003	0.002	1955.0	2637.0	1.00
baseline_observation_norm[1]	1.153	0.277	0.632	1.673	0.005	0.004	3110.0	2555.0	1.00
yplus[0]	0.082	0.011	0.062	0.102	0.000	0.000	2100.0	2608.0	1.00
yplus[1]	0.139	0.013	0.114	0.163	0.000	0.000	1677.0	2111.0	1.00
yplus[2]	0.052	0.011	0.031	0.072	0.000	0.000	1486.0	1490.0	1.00
yplus_norm[0]	1.640	0.213	1.238	2.037	0.005	0.003	2100.0	2608.0	1.00
yplus_norm[1]	2.782	0.260	2.288	3.261	0.006	0.005	1677.0	2111.0	1.00
yplus_norm[2]	1.048	0.211	0.625	1.432	0.006	0.004	1486.0	1490.0	1.00

[17]:

print("solutions:", model.solutions)
display(az.summary(model.trace["solution_0"]))
# this also works: az.summary(model.trace.solution_0)

solutions: [0]

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
H_amplitude[0]	37.455	0.362	36.772	38.132	0.005	0.003	5811.0	3136.0	1.00
H_amplitude[1]	38.676	3.628	31.908	45.512	0.120	0.085	907.0	1321.0	1.01
H_amplitude[2]	37.453	2.792	32.046	42.425	0.093	0.066	899.0	1185.0	1.01
H_area[0]	803.055	11.282	781.089	823.590	0.294	0.208	1471.0	2189.0	1.00
H_area[1]	1041.562	139.094	775.593	1301.150	4.666	3.305	890.0	1212.0	1.01
H_area[2]	1170.196	138.528	923.766	1448.213	4.670	3.303	880.0	1197.0	1.01
H_area_norm[0]	0.803	0.011	0.781	0.824	0.000	0.000	1471.0	2189.0	1.00
H_area_norm[1]	1.042	0.139	0.776	1.301	0.005	0.003	890.0	1212.0	1.01
H_area_norm[2]	1.170	0.139	0.924	1.448	0.005	0.003	880.0	1197.0	1.01
H_center[0]	-29.990	0.114	-30.197	-29.767	0.002	0.002	2314.0	2321.0	1.00
H_center[1]	5.203	0.940	3.471	6.984	0.031	0.022	897.0	1230.0	1.01
H_center[2]	25.543	1.381	22.875	28.096	0.046	0.033	899.0	1239.0	1.01
H_center_norm[0]	-1.200	0.005	-1.208	-1.191	0.000	0.000	2314.0	2321.0	1.00
H_center_norm[1]	0.208	0.038	0.139	0.279	0.001	0.001	897.0	1230.0	1.01
H_center_norm[2]	1.022	0.055	0.915	1.124	0.002	0.001	899.0	1239.0	1.01
H_fwhm[0]	20.143	0.291	19.606	20.670	0.007	0.005	1893.0	2559.0	1.00
H_fwhm[1]	25.208	1.117	23.097	27.246	0.036	0.026	958.0	1133.0	1.01
H_fwhm[2]	29.260	1.387	26.698	31.882	0.045	0.032	937.0	1375.0	1.01
He_H_fwhm_ratio[0]	1.031	0.090	0.863	1.200	0.002	0.001	2772.0	2444.0	1.00
He_H_fwhm_ratio[1]	1.029	0.065	0.914	1.158	0.001	0.001	2993.0	2837.0	1.00
He_H_fwhm_ratio[2]	0.980	0.087	0.818	1.139	0.002	0.001	3038.0	2670.0	1.00
He_amplitude[0]	2.984	0.348	2.333	3.641	0.006	0.004	3739.0	2939.0	1.00
He_amplitude[1]	5.207	0.386	4.443	5.891	0.008	0.006	2342.0	2751.0	1.00
He_amplitude[2]	2.030	0.500	1.016	2.913	0.015	0.010	1164.0	1435.0	1.00
He_area[0]	65.844	8.719	50.214	82.647	0.194	0.137	1994.0	2704.0	1.00
He_area[1]	143.813	15.864	111.302	171.022	0.435	0.308	1335.0	1977.0	1.00
He_area[2]	62.151	17.245	28.949	94.072	0.526	0.372	1065.0	1359.0	1.00
He_center[0]	-152.140	0.114	-152.347	-151.917	0.002	0.002	2314.0	2321.0	1.00
He_center[1]	-116.947	0.940	-118.679	-115.166	0.031	0.022	897.0	1230.0	1.01
He_center[2]	-96.607	1.381	-99.275	-94.054	0.046	0.033	899.0	1239.0	1.01
He_fwhm[0]	20.772	1.836	17.292	24.148	0.036	0.025	2594.0	2517.0	1.00
He_fwhm[1]	25.936	1.979	22.492	29.773	0.048	0.034	1733.0	2229.0	1.00
He_fwhm[2]	28.656	2.760	23.720	34.030	0.059	0.042	2130.0	2564.0	1.00
baseline_observation_norm[0]	-2.626	0.111	-2.841	-2.434	0.003	0.002	1955.0	2637.0	1.00
baseline_observation_norm[1]	1.153	0.277	0.632	1.673	0.005	0.004	3110.0	2555.0	1.00
yplus[0]	0.082	0.011	0.062	0.102	0.000	0.000	2100.0	2608.0	1.00
yplus[1]	0.139	0.013	0.114	0.163	0.000	0.000	1677.0	2111.0	1.00
yplus[2]	0.052	0.011	0.031	0.072	0.000	0.000	1486.0	1490.0	1.00
yplus_norm[0]	1.640	0.213	1.238	2.037	0.005	0.003	2100.0	2608.0	1.00
yplus_norm[1]	2.782	0.260	2.288	3.261	0.006	0.005	1677.0	2111.0	1.00
yplus_norm[2]	1.048	0.211	0.625	1.432	0.006	0.004	1486.0	1490.0	1.00

We generate posterior predictive checks as well as a trace plot of the individual chains. In the posterior predictive plot, we show each chain as a different color. Each line is one posterior sample.

[18]:

posterior = model.sample_posterior_predictive(
    thin=100, # keep one in {thin} posterior samples
)
_ = plot_predictive(model.data, posterior.posterior_predictive)

Sampling: [observation]

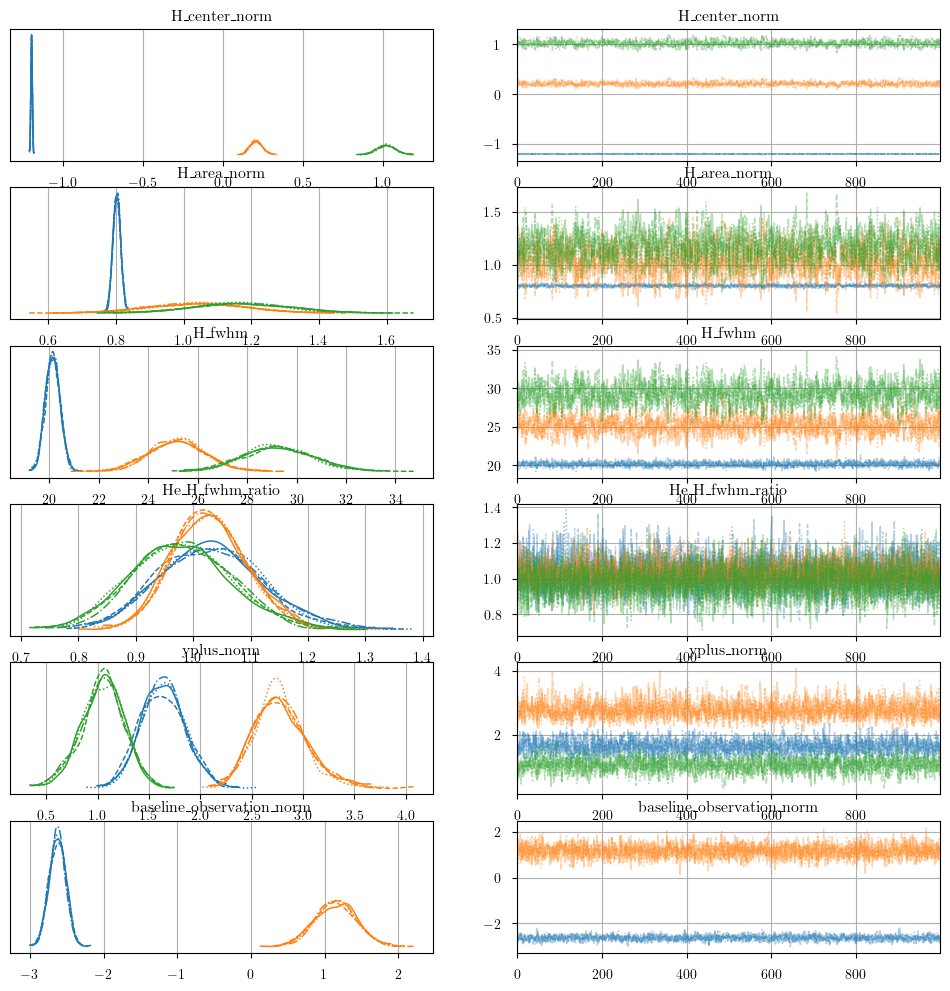

[19]:

from bayes_spec.plots import plot_traces

_ = plot_traces(model.trace.solution_0, model.cloud_freeRVs + model.baseline_freeRVs + model.hyper_freeRVs)

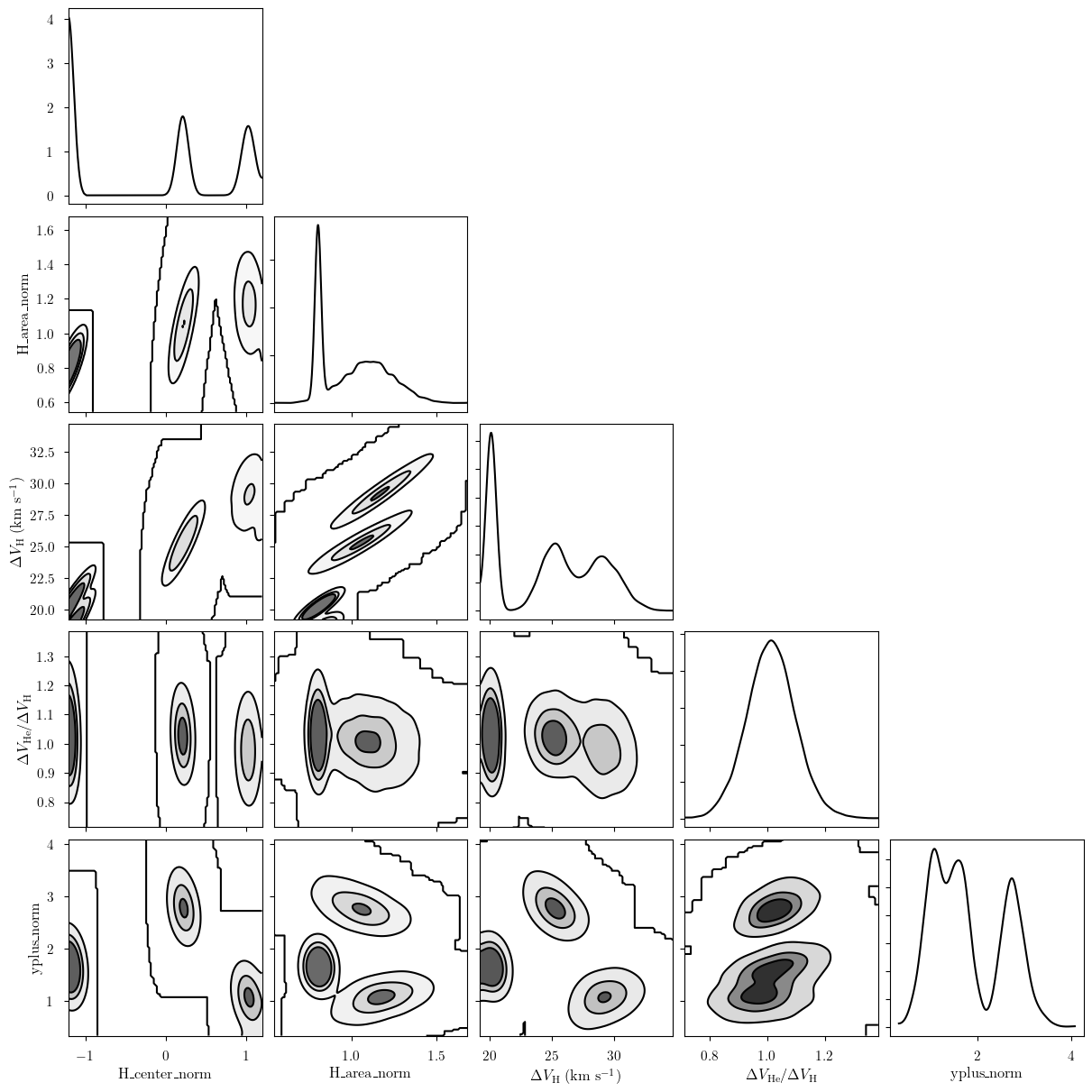

We can inspect the posterior distribution pair plots. First, the normalized, free cloud parameters.

[20]:

_ = plot_pair(
    model.trace.solution_0, # samples
    model.cloud_freeRVs, # var_names to plot
    labeller=model.labeller, # label manager
)

Notice that there are three posterior modes. These correspond to the three clouds of the model. We can plot the posterior distributions of the deterministic quantities for a single cloud (excluding the spectral rms hyper parameter).

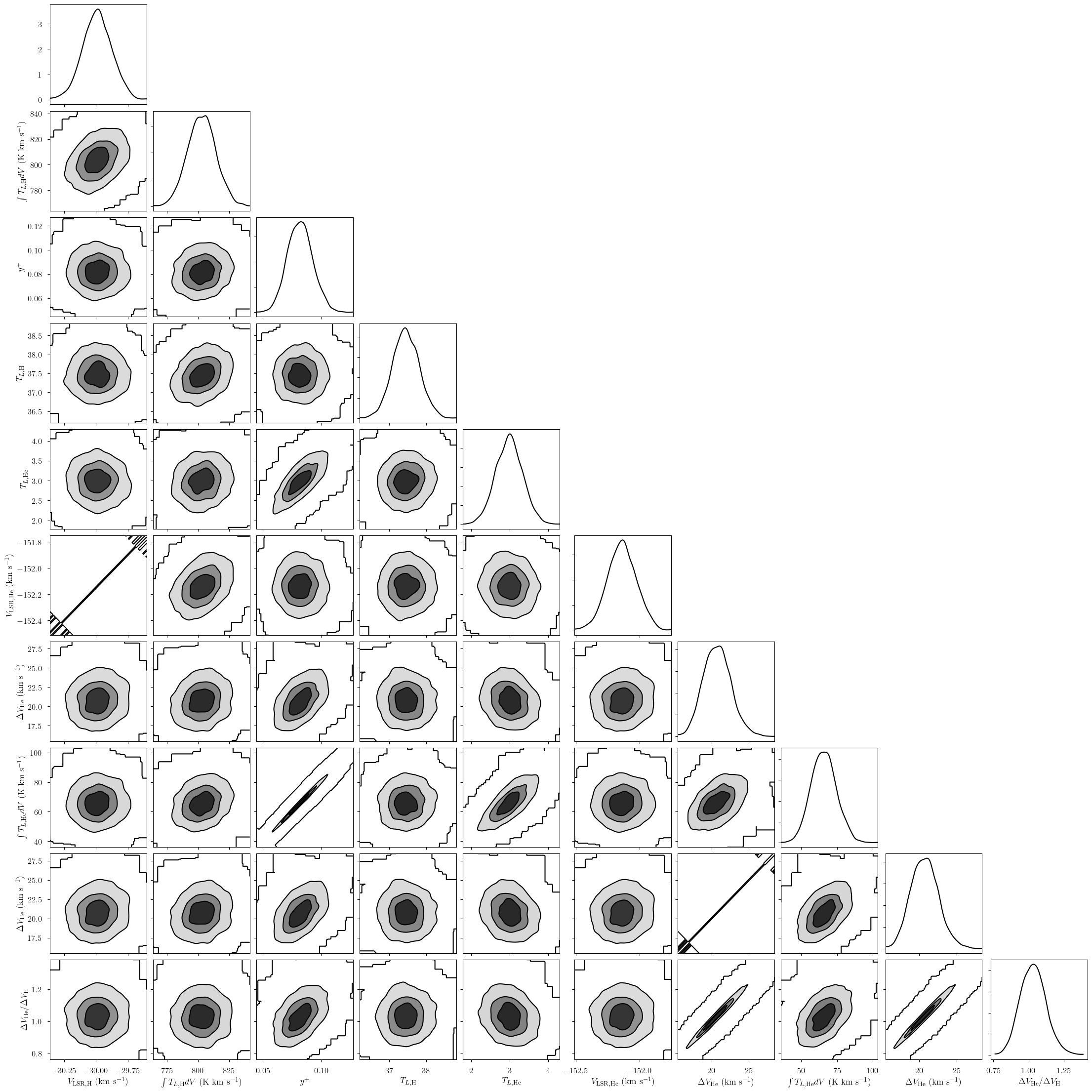

[21]:

_ = plot_pair(
    model.trace.solution_0.sel(cloud=0), # samples
    model.cloud_deterministics + ["He_fwhm", "He_H_fwhm_ratio"], # var_names to plot
    labeller=model.labeller, # label manager
)

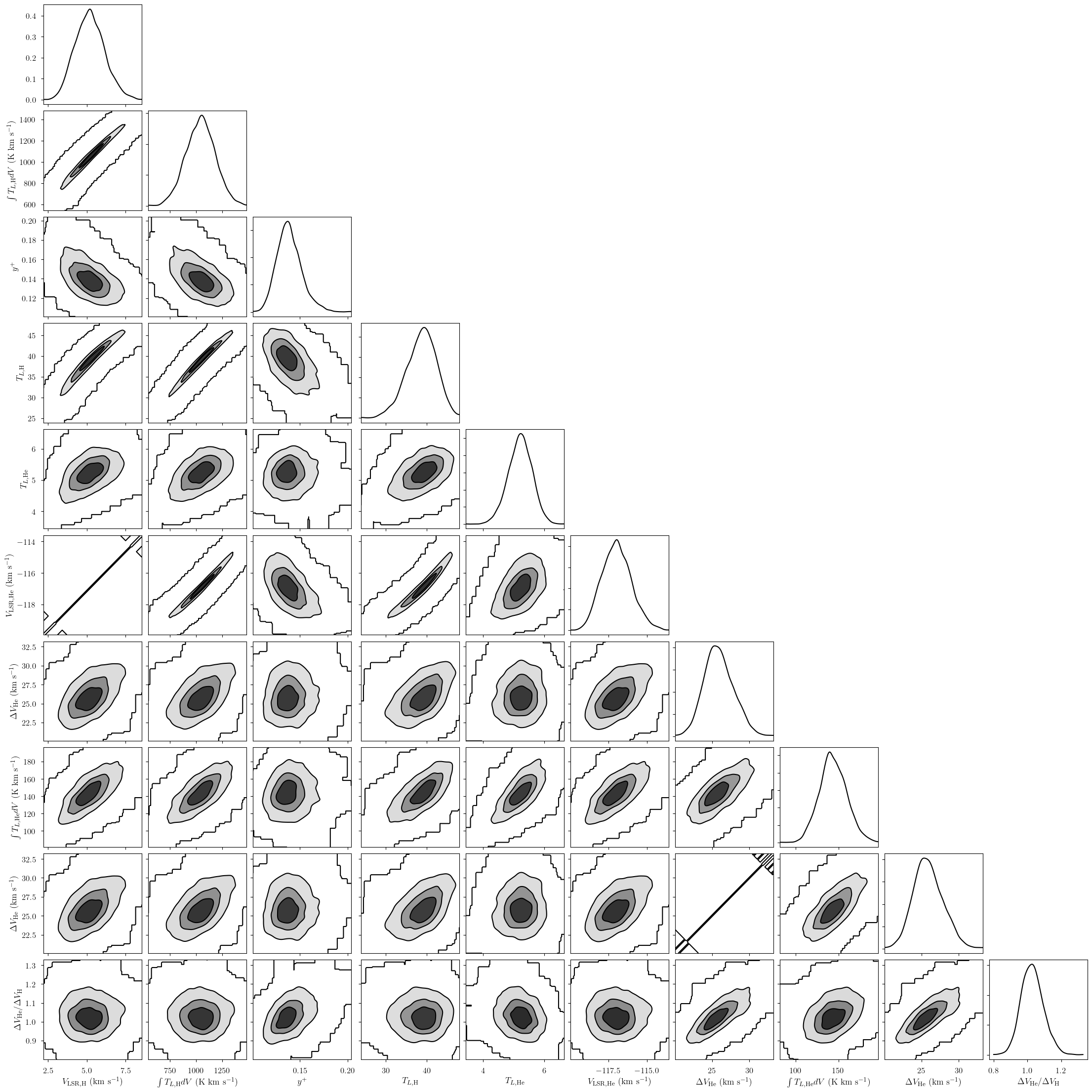

[22]:

_ = plot_pair(
    model.trace.solution_0.sel(cloud=1), # samples
    model.cloud_deterministics + ["He_fwhm", "He_H_fwhm_ratio"], # var_names to plot
    labeller=model.labeller, # label manager
)

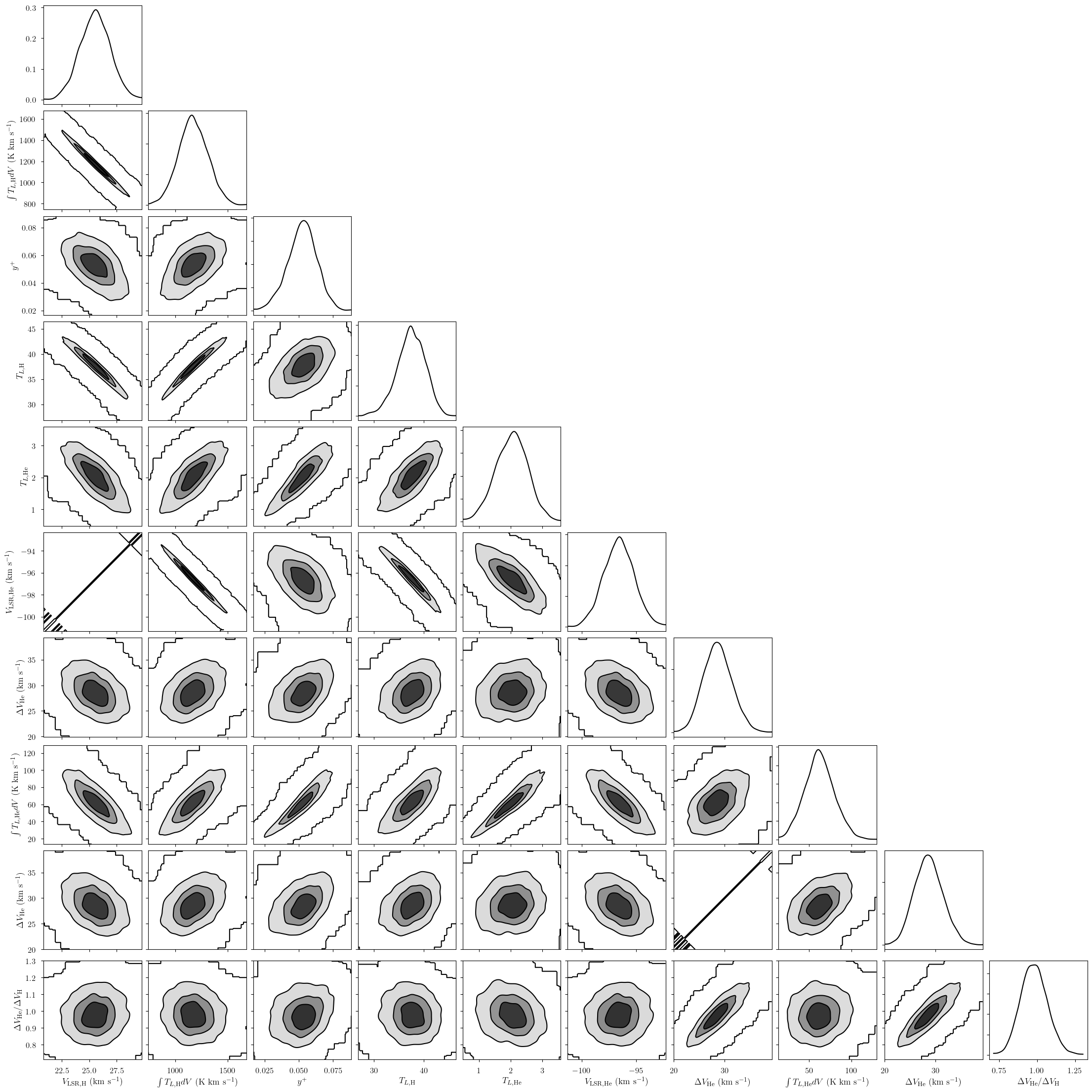

[23]:

_ = plot_pair(
    model.trace.solution_0.sel(cloud=2), # samples
    model.cloud_deterministics + ["He_fwhm", "He_H_fwhm_ratio"], # var_names to plot
    labeller=model.labeller, # label manager
)

Finally, we can get the posterior statistics, Bayesian Information Criterion (BIC), etc.

[24]:

point_stats = az.summary(
    model.trace.solution_0,
    var_names=model.cloud_freeRVs + model.cloud_deterministics,
    kind='stats',
    hdi_prob=0.68
)
print("BIC:", model.bic())
display(point_stats)

BIC: 808.387686307096

	mean	sd	hdi_16%	hdi_84%
H_center_norm[0]	-1.200	0.005	-1.204	-1.195
H_center_norm[1]	0.208	0.038	0.170	0.245
H_center_norm[2]	1.022	0.055	0.968	1.078
H_area_norm[0]	0.803	0.011	0.792	0.814
H_area_norm[1]	1.042	0.139	0.918	1.195
H_area_norm[2]	1.170	0.139	1.023	1.298
H_fwhm[0]	20.143	0.291	19.834	20.417
H_fwhm[1]	25.208	1.117	24.123	26.307
H_fwhm[2]	29.260	1.387	27.903	30.649
He_H_fwhm_ratio[0]	1.031	0.090	0.936	1.113
He_H_fwhm_ratio[1]	1.029	0.065	0.957	1.083
He_H_fwhm_ratio[2]	0.980	0.087	0.889	1.060
yplus_norm[0]	1.640	0.213	1.435	1.857
yplus_norm[1]	2.782	0.260	2.505	2.992
yplus_norm[2]	1.048	0.211	0.870	1.285
H_center[0]	-29.990	0.114	-30.101	-29.877
H_center[1]	5.203	0.940	4.257	6.132
H_center[2]	25.543	1.381	24.201	26.952
H_area[0]	803.055	11.282	791.664	813.750
H_area[1]	1041.562	139.094	918.214	1194.842
H_area[2]	1170.196	138.528	1022.599	1297.617
yplus[0]	0.082	0.011	0.072	0.093
yplus[1]	0.139	0.013	0.125	0.150
yplus[2]	0.052	0.011	0.044	0.064
H_amplitude[0]	37.455	0.362	37.106	37.808
H_amplitude[1]	38.676	3.628	35.510	42.706
H_amplitude[2]	37.453	2.792	34.642	40.134
He_amplitude[0]	2.984	0.348	2.633	3.321
He_amplitude[1]	5.207	0.386	4.902	5.664
He_amplitude[2]	2.030	0.500	1.499	2.497
He_center[0]	-152.140	0.114	-152.251	-152.027
He_center[1]	-116.947	0.940	-117.893	-116.018
He_center[2]	-96.607	1.381	-97.949	-95.198
He_fwhm[0]	20.772	1.836	18.958	22.546
He_fwhm[1]	25.936	1.979	23.754	27.637
He_fwhm[2]	28.656	2.760	26.003	31.532
He_area[0]	65.844	8.719	56.669	73.864
He_area[1]	143.813	15.864	129.455	160.414
He_area[2]	62.151	17.245	45.132	79.168

[ ]:

"""
    "H_area": [1000.0, 1500.0, 1250.0],
    "H_center": [-30.0, 5.0, 25.0],
    "H_fwhm": [35.0, 50.0, 20.0],
    "He_H_fwhm_ratio": [1.0, 0.9, 1.1],
    "yplus": [0.05, 0.1, 0.15],
    "baseline_observation_norm": [-2.0, 1.5], # normalized baseline coefficients
"""

YPlusModel Tutorial

Simulating Data

Model Definition

Variational Inference

Posterior Sampling: MCMC

`YPlusModel` Tutorial
